Mini PC Industrie, Desktop Fanless Computer J6412, Industrie PC Hutschiene 4 COM RS232/RS485/422 Port, Dual Gibit RJ45 LAN, PCIe, Opnsense, SATA, Auto Power On, 8GB RAM 128GB SSD

Marke: PeeliCeeli
Betriebssystem: OS
CPU-Modell: Celeron
CPU-Taktfrequenz: 2,6 GHz
Cache-Größe: 1,5 MB
Beschreibung der Grafikkarte: UHD Graphics
Spezifische Verwendungsmöglichkeiten für Produkt: Business, Multimedia, Persönlich
Modellname: TMD-2W4C-RJ45-PCIe
Enthaltene Komponenten: 1xMini PC, 1xEar hooks, 1xPower adapter, 1x1.5M standard three-prong power cord (T-shaped), 1x1.5m yellow-green grounding wire, M3 for industrial PC and M6 for user cabinet, round loop lugMehr anzeigen
CPU-Hersteller: Intel

- Low-Power Processor: The Mini PC Processor featuring J6412 is a low-power embedded CPU built on a 10nm process. Featuring a 4-core 4-thread design, it boasts a base frequency of 1.5GHz and a boost frequency of up to 2.6GHz, with a TDP of 10W. Equipped with a 16EU integrated GPU, it supports 4K video encoding and decoding, making it ideal for industrial IoT, edge computing, and similar applications
- High-Speed LAN: Equipped with 2 Gigabit RJ45 Ethernet ports, the corresponding network card chips are configured differently based on the processor model: the version with the i5-8265U processor uses the i219LM chip, while an optional configuration with the i210AT chip is also available for the i5-8265U model. For the J6412 processor version, the i210AT chip is uniformly adopted, and there is an exclusive configuration featuring the 8111H chip
- Flexible Storage & Expansion: Industrie PC hutschiene features 1xDDR4 SODIMM slot, supporting single-channel memory of up to 32GB. The memory speed is 2400 MT/s with the i5-8265U CUP and 3200 MT/s with the J6412. It provides 1XM.2 2280 slot (for the i5-8265U) that supports both SATA and NVMe SSDs, with an optional 1 x 2.5-inch drive bay. For expansion, it offers 1xM.2 2230 E-Key slot, 1x PCIe x1 slot and 1xM.2 3052 B-Key slot for 4G/5G modules, along with a dedicated SIM card slot
- Industrial Fanless Design: Mini PC adopts a fully sealed aluminum alloy chassis, achieving good dustproof and moisture-resistant performance while effectively shielding against electromagnetic interference. This CNC-machined aluminum alloy itself serves as a high-efficiency "passive heatsink," conducting heat generated by internal core components like the processor evenly and rapidly to the entire chassis surface for natural heat exchange with air via the large contact area

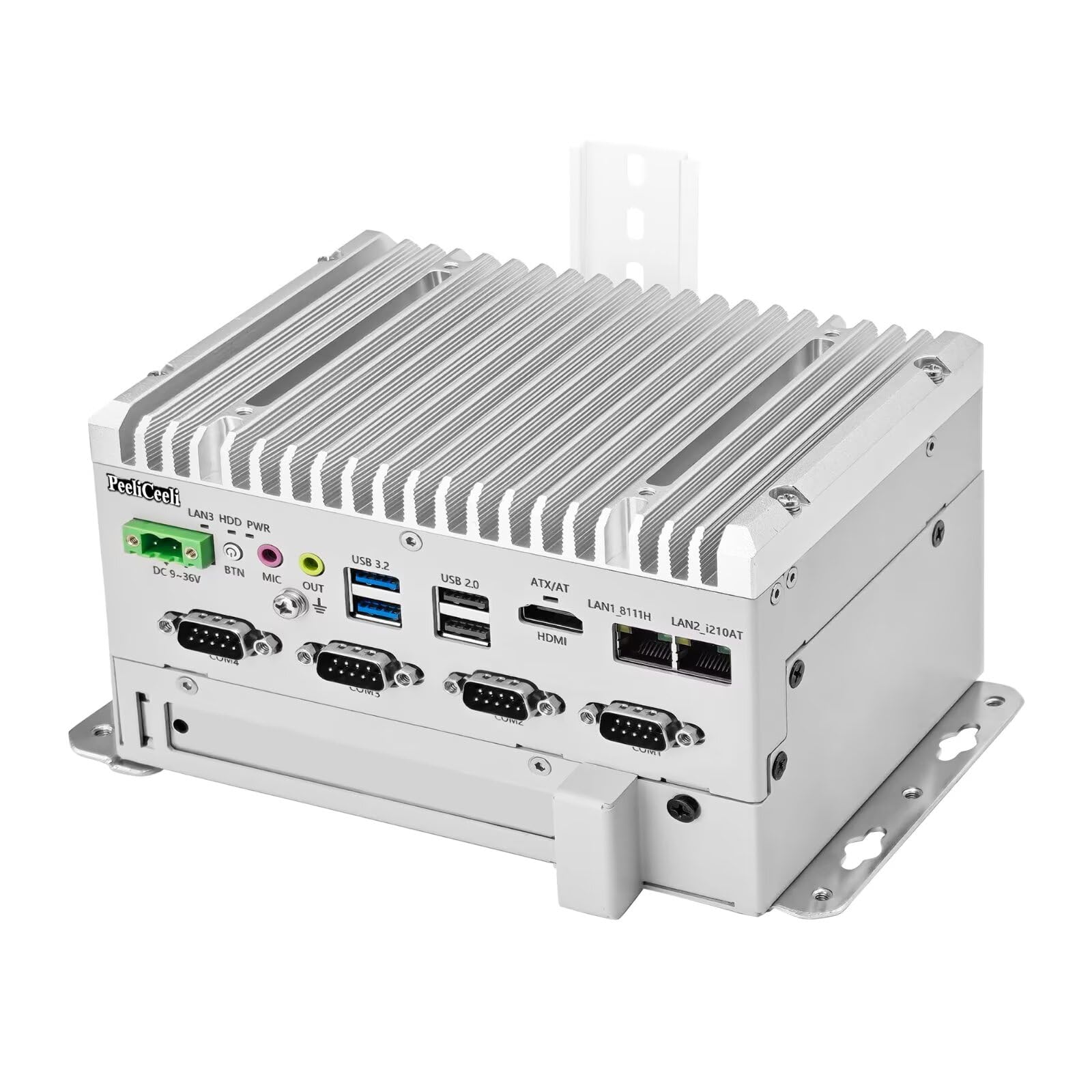

- Rich External Interfaces: Fanless PC featuring 4xCOM RS232/RS485/422 ports, 1xHD display, Realtek ALC897 HD Audio with Line-out and MIC-in, compatible with 4Ω 3W / 8Ω 2W external speakers. Supports DIN rail and wall mounting, 4 antenna connections and grounding. Phoenix 2-pin lockable power input (DC 9-36V). Includes 4×USB 3.2 ports (i5-8265U) ,2xUSB3.2(J6412), 2xUSB2.0(J6412), and pre-definable locking terminal block (default: Remote SW)
